Product Description
Introduction of products.

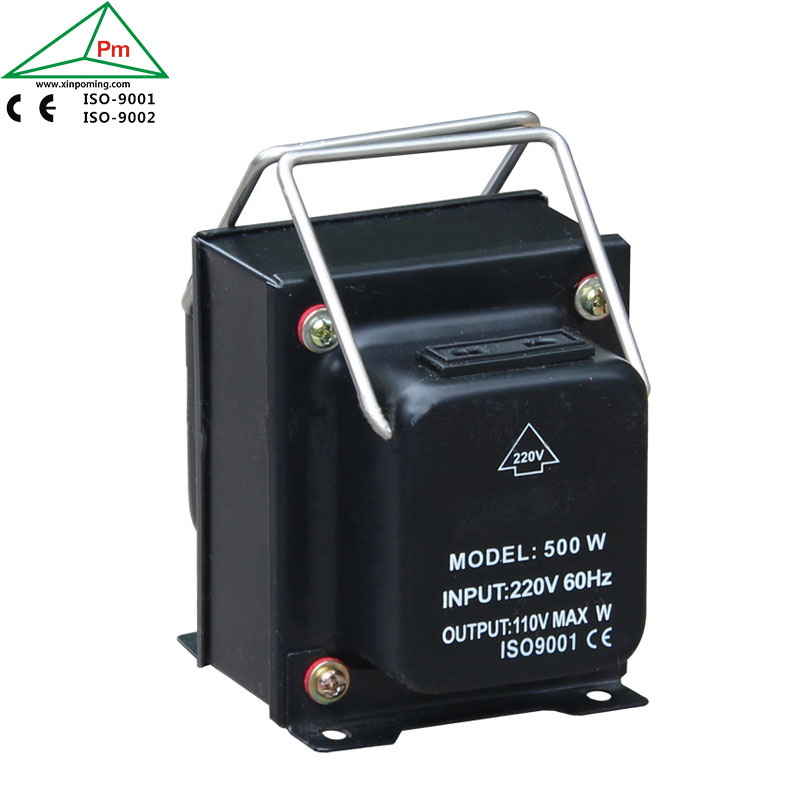

TC-500 Step Down Transformer
220v 110v step down transformer 500va/500w electronic transformer electric is specially designed for such electronic equipment whose rated AC voltage different from that of the local net voltage. They are safe for use within the rated voltage range. Step Up And Down Transformer 100W Great Product Fast Shipping
1. Feature transformer transformer price up & down transformer
This series step-up & step-down transformer is an AC voltage converting device.
Using it to convert the multi-kind net voltages into a general output voltage
under which all the electronic units are safe for use within the rated power range. Step Up And Down Transformer 100W Great Product Fast Shipping
2. Main Technical Data transformer transformer price up & down transformer
Phase no.: Single-phase
Input voltage: AC110V or 200V or 220V or 240V
Output voltage: AC110V & 220V. 240v 110v step down transformer 100va/100w electronic transformer /aiso electric
With fuse protector or with over current protector
Main features:
1. Heavy duty suitable for continuous use.
2. Terminal connection or plug & socket connection.
3. Various types of plug & socket, US, European, Schuko, VDE, UK, Asian, Australian, or as request.
4. Output up to 3 sockets.
5. Input voltage range: 110V/117V/120V/220V/230V/240V
6. Output voltage range: 220V/230V/240V/110V/117V/120V
7. Typical capacity: 100/200/300/500/800/1000/1500/2000/3000/5000/8000/10000VA, or customized
8. Frequency: 50/60HZ
9. Protection : fuse protector or over current protector.

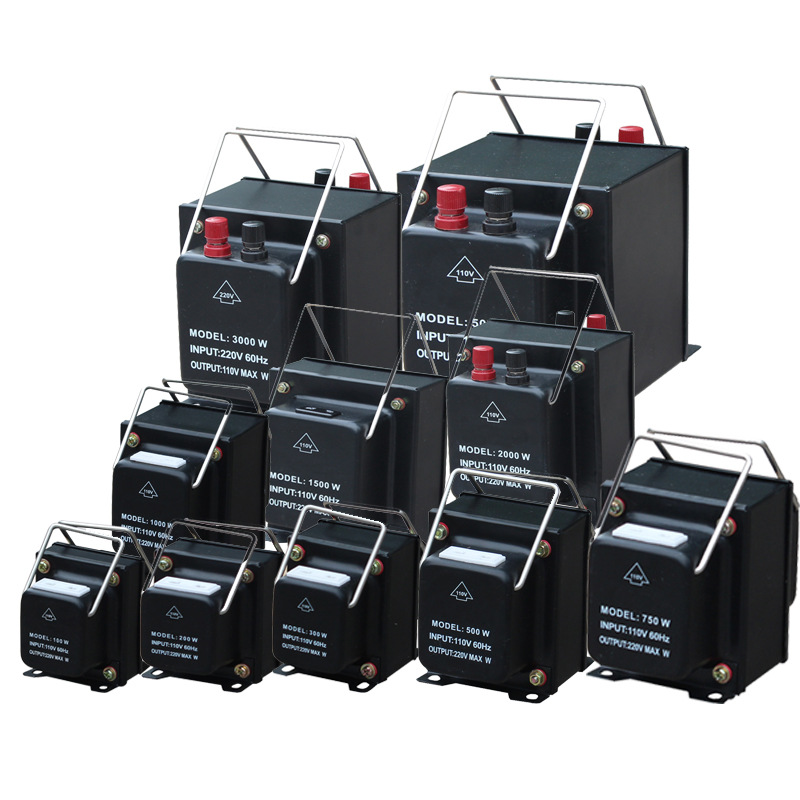

Packages: Product Series
| Model NO. | Product Size (L*W*H)(cm) |
Carton size (L*W*H)(cm) |
QTY per Carton | G.W.(kg) |
| TC-100VA | 10×6.9×8.2 | 27×27×19 | 14.6 | 12 |
| TC-200VA | 11×6.9×8.2 | 27×27×19 | 16.6 | 12 |
| TC-300VA | 12.3×6.9×8.2 | 27×27×19 | 20.1 | 12 |
| TC-500VA | 12.7×8.5×10.1 | 30.5×22.5×23 | 22.6 | 4 |
| TC-800VA | 13.7×8.5×10.1 | 30.5×22.5×23 | 26.25 | 4 |
| TC-1000VA | 14.7×8.5×10.1 | 30.5×22.5×23 | 30.6 | 4 |
| TC-1500VA | 15×13×15.5 | 31.5×17.5×18 | 27.2 | 4 |
| TC-2000VA | 16.5×13×15.5 | 31.5×17.5×18 | 35.7 | 2 |
| TC-3000VA | 19×13×15.5 | 29.5×24×20.5 | 24.2 | 2 |
| TC-5000VA | 22×13×15.5 | 29.5×24×20.5 | 32.6 | 1 |
Packages:
1) Carton Package;
2) Wooden Package;
3) Required Package.
Warranty:
1years after B/L date.
Quality Controls:
With more than 10 years experience, we produce A-Grade voltage stabilizer/regulator and can offer OEM & ODM service. All our products have CE certificate and some have obtained patent.
Before leaving the XINPOMING factory, every transformer must pass a series of rigorous tests, performed with advanced equipment, on a range of measurements.
| Testing items | |||
| No. | Test name | Routine Test | Optional Test |
| 1 | Input voltage test | √ | |
| 2 | 0utput voltage test | √ | |
| 3 | No-load loss and current test | √ | |
| 4 | PRI leakage sense test | √ | |
| 5 | Insulation resistance | √ | |
| 6 | Impedance voltage | √ | |
| 7 | Pressure test | √ | |
| 8 | Insulation resistance | √ | |
| 9 | Winding resistance test | √ | |
| 10 | Temperature rise test | √ | √ |
| 11 | Efficiency | √ | |
| 12 | Connection method | √ | |
| 13 | Inrush current test | √ | |
| 14 | Sound level test | √ | |
| 15 | Waterproof test | √ | |
Below are part of our testing instruments and certifications.
