Description
Description:

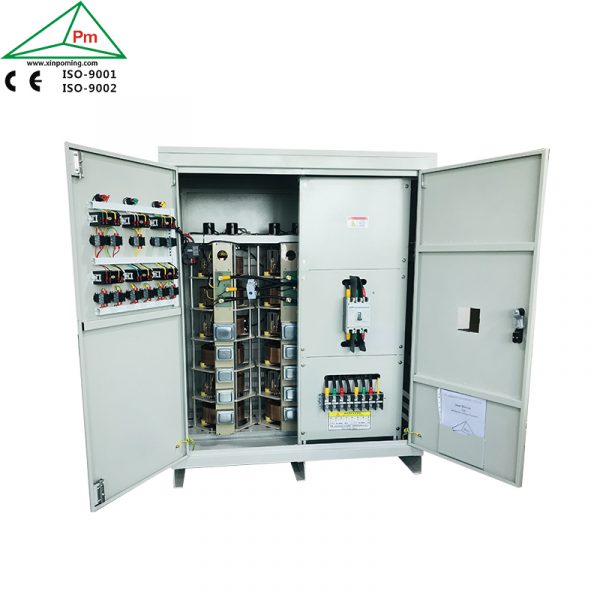

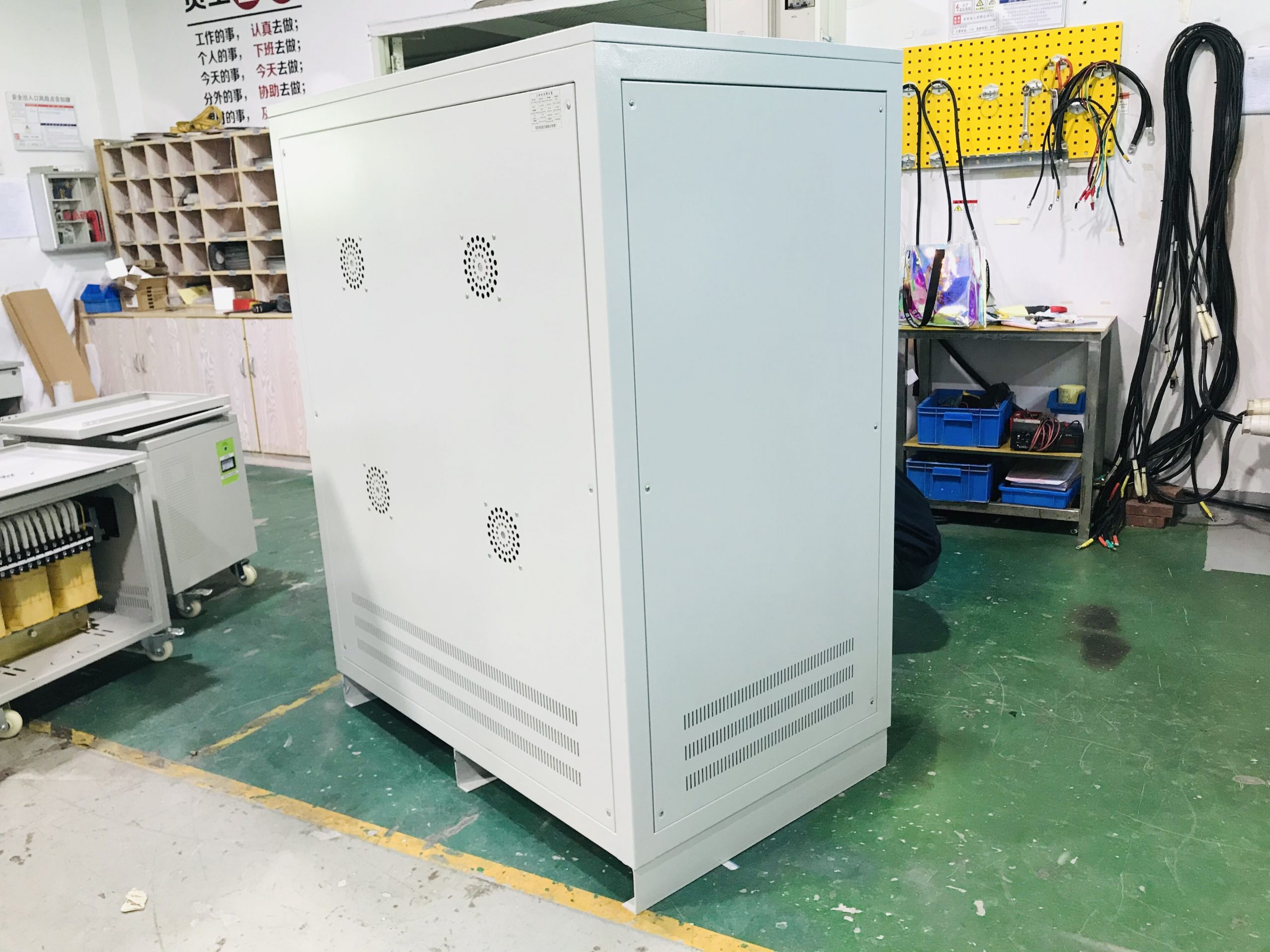

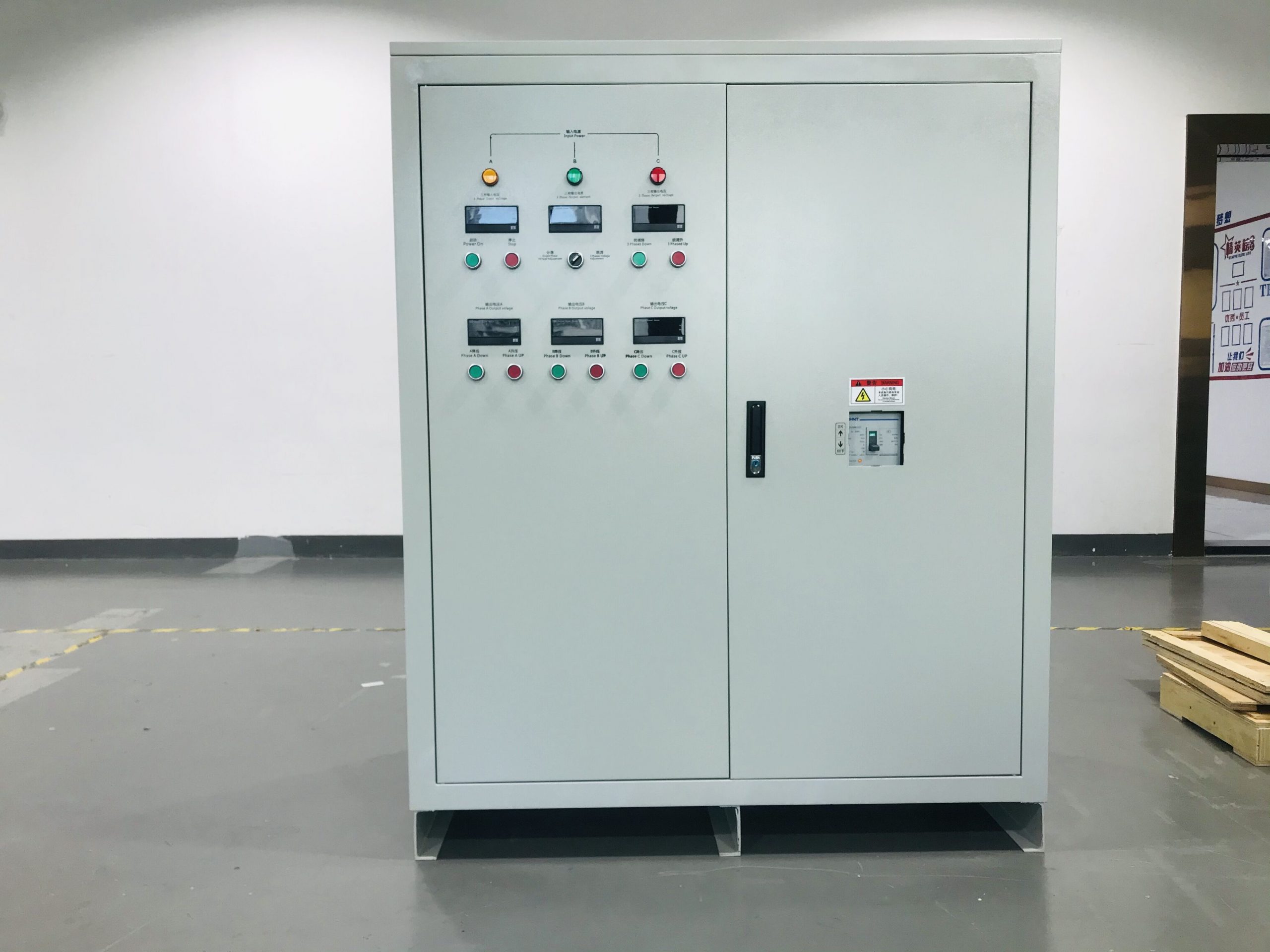

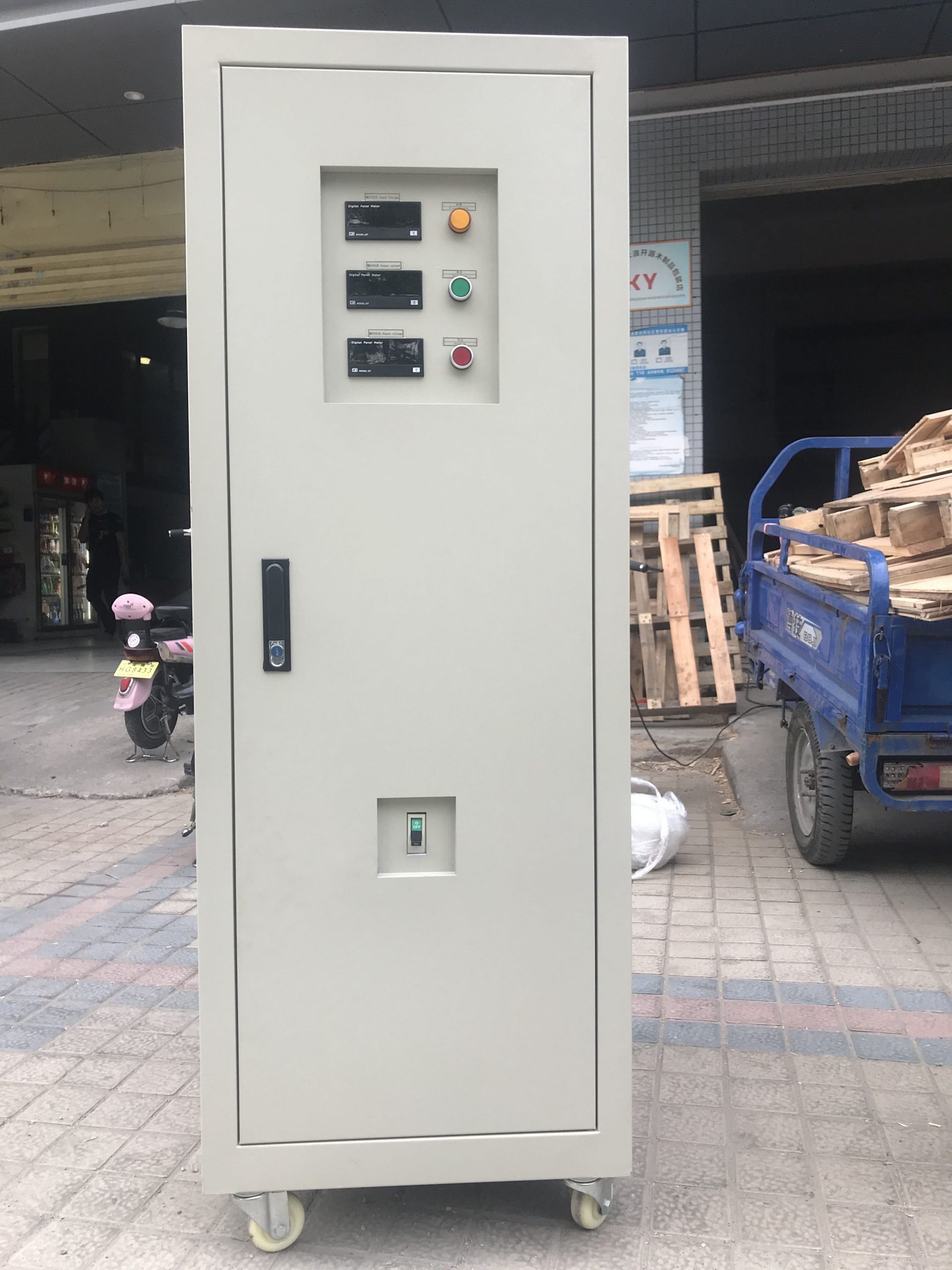

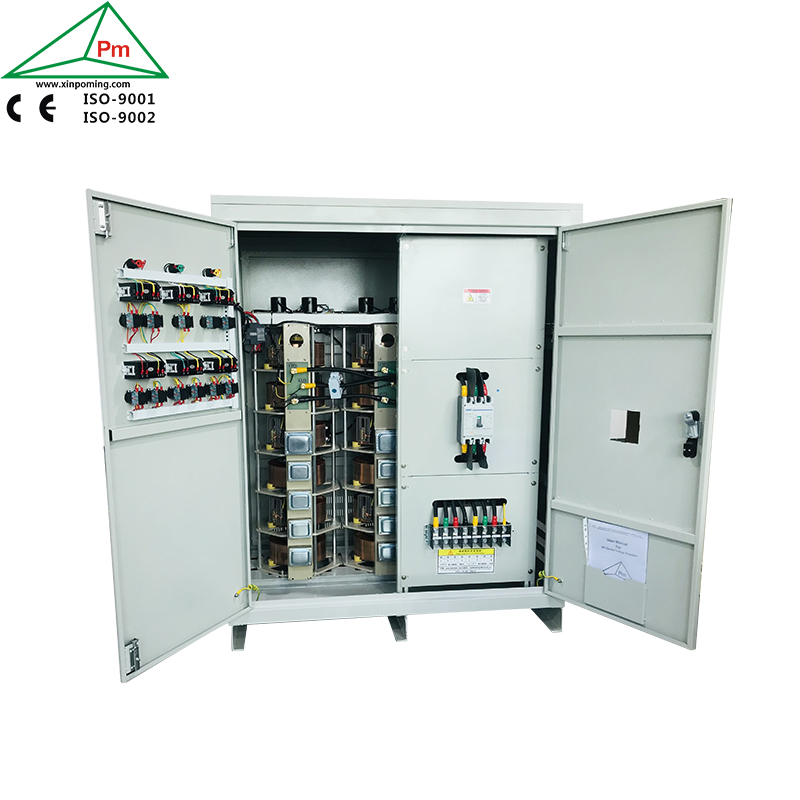

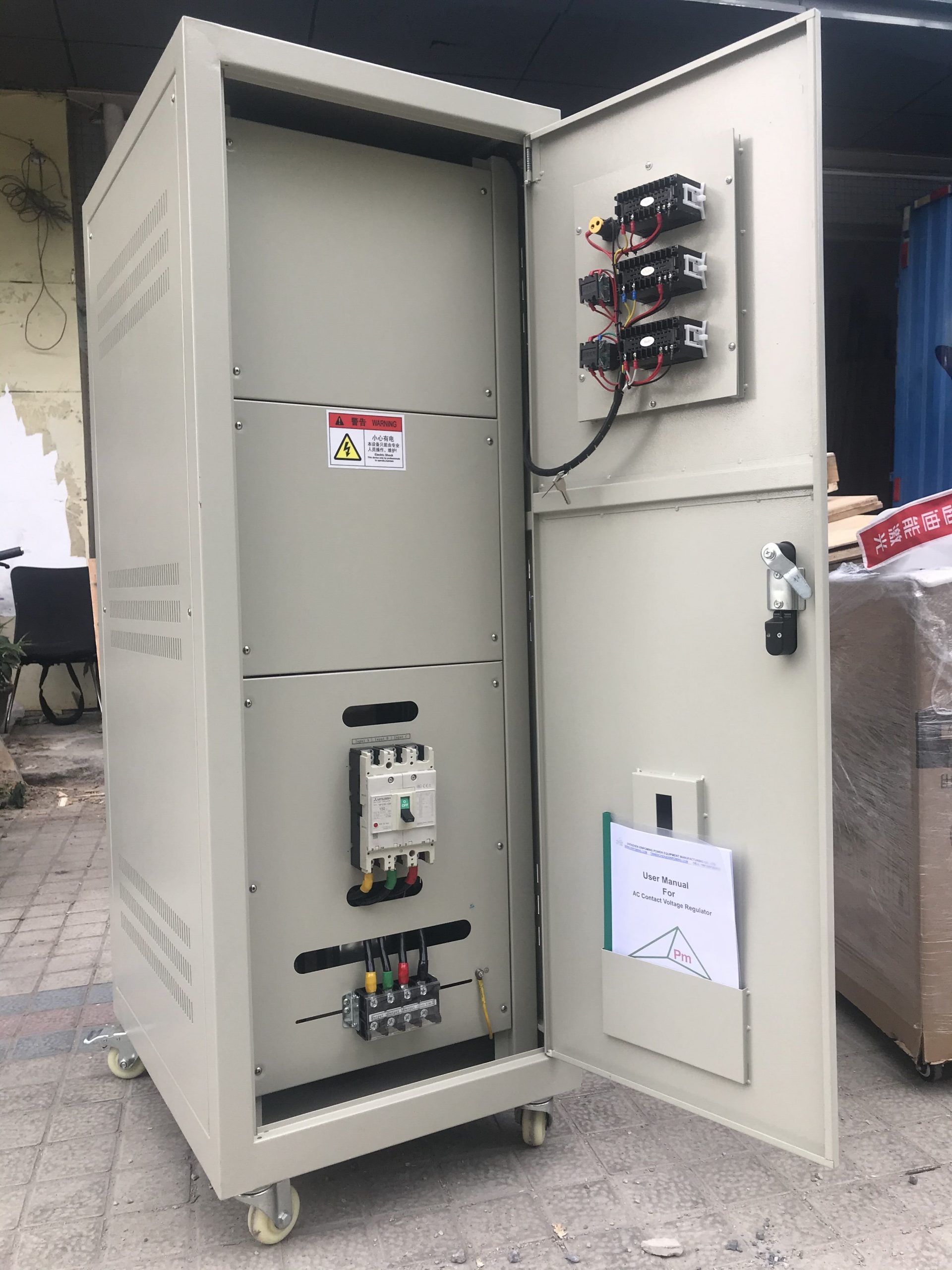

POMING’s TSG2J Series Variable Voltage Transformer is essentially an auto transformer whose output (terminal) voltage can be adjusted. There are two kinds of core: ring type and column type. The column core is similar to the general transformer, which is made of silicon steel sheet, while the ring core is made of silicon steel strip. In the structure of the toroidal auto-voltage regulator, the winding is wound on the toroidal core with a single layer of insulated copper wire.The surface of the coil part is polished to form a smooth plane, which is contacted by a carbon brush made of copper graphite composite. The carbon brush can rotate and slide on the wire surface by hand wheel, thus changing the output voltage. If the current capacity is greater than 10A, two or more carbon brushes in parallel are used. The self coupling regulator is generally made of self cooling and dry type. In special situations with special capacity or special use environment, it can also be made into oil immersed self cooling type and electric air cooling type, three ring-type single-phase auto-voltage regulators are installed coaxially to form a three-phase auto-voltage regulator.
Outstanding Features:
- Using high magnetic conductivity oriented straight steel sheet, so the loss is small.
- Using mechanical automatic winding, and the turns are even. Each line is straightened and parallel, so the contact surface is flat.
- The heat-resistant resin material is used for dipping and curing to make the regulator more heat-resistant.
- Use mechanical grinding to make the contact surface smooth as a mirror.
- The traditional multi carbon brush design can increase the contact surface of carbon brush, reduce the current borne by each carbon brush, and reduce the temperature rise.
- Usinghigh-performance carbon brushes to increase conductivity and eliminate sparks.
- Adoptingcopper surface welding to reduce contact resistance and temperature rise.
Application:
- Electric furnace industry:annealing furnace, drying furnace, quenching furnace, sintering furnace, crucible furnace, tunnel furnace, melting furnace, box electric furnace, pit electric furnace, melting electric furnace, rolling electric furnace, vacuum electric furnace, trolley electric furnace, quenching electric furnace, Aging electric furnace, bell-type electric furnace, atmosphere electric furnace, oven, experimental electric furnace, heat treatment, resistance furnace, vacuum furnace, mesh belt furnace, high temperature furnace, furnace, electric furnace;
- Mechanical equipment: packaging machinery, injection molding machinery, heat shrinking machinery, extrusion machinery, food machinery, tempering equipment, plastic processing, infrared heating;
- Glass industry: glass fiber, glass forming, glass melting, glass printing, float glass production line, annealing tank;
- Automobile industry: spray drying, thermoforming;
- Energy-saving lighting:tunnel lighting, street lighting, photography lighting, stage lighting;
- Chemical industry:distillation and evaporation, preheating system, pipeline heating, petrochemical industry, temperature compensation;
- Other industries: salt bath furnace, power frequency induction furnace, quenching furnace temperature control, heat treatment furnace temperature control, diamond press heating, high-power magnetization/demagnetization equipment, aviation power supply voltage regulation, central air-conditioning electric heater temperature control, Textile machinery, crystal stone production, powder metallurgy machinery, color picture tubes, production equipment, metallurgical machinery equipment, petrochemi
Technical Parameters:
Model N.O. | TSGC2J-3KVA | TSGC2J-6KVA | TSGC2J-9KVA | TSGC2J-15KVA | TSGC2J-20KVA | TSGC2J-30KVA | TSGC2J-40KVA | TSGC2J-50KVA | TSGC2J-60KVA | TSGC2J-90KVA | |
Capacity | 3KVA | 6KVA | 9KVA | 15KVA | 20KVA | 30KVA | 40KVA | 50KVA | 60KVA | 90KVA | |
Type | Maunal Type | ||||||||||
Material | Copper | ||||||||||
Function | None | ||||||||||
AC Input | Phases | Three phase | |||||||||
Rated Voltage | 380V (customizable according to customer requirements) | ||||||||||
Frequency | 50/60HZ | ||||||||||
AC Output | Phases | Three phase | |||||||||
Rated Voltage | 0-450V Continuously Variable (customizable according to customer requirements) | ||||||||||
Frequency | 50/60HZ (Same as the input frequency) | ||||||||||
Protection | None | ||||||||||
Rated Output Current | 3.6 | 7.3 | 10.9 | 18.2 | 24.3 | 36.5 | 48.6 | 60.8 | 72.9 | 109.4 | |
Temperature Rise | <65℃ | ||||||||||
Load operation | It can work continuously with 80% load (the load capacity of low-voltage end will decrease) | ||||||||||
Efficiency | >98% | ||||||||||
Dielectric Strength | 3000V/min No breakdown | ||||||||||
Insulation Class | Level B | ||||||||||
Cooling Type | Natural air cooling | ||||||||||
Waveform distortion | No extra waveform distortion | ||||||||||
Indication | Volt Meter | Equipped with output volt meter | |||||||||
Current Meter | None | ||||||||||
Operation Type | Manual type | ||||||||||
Cooling equipment | Forced fan cooling | ||||||||||
Environment | Position | The operation site shall be free of conductive dust or explosive hazardous materials, corrosive metal or insulating gas, and serious vibration interference. | |||||||||
Working temperature | -10~50℃ | ||||||||||
Relative humidity | 15~85℅(25℃) (non-condensing state) | ||||||||||
Altitude | <1500M | ||||||||||
Size (high * wide * deep mm) | 190*200*270 | 190*230*480 | 270*260*480 | 370*450*560 | 370*450*650 | 370*450*1100 | 370*450*1200 | 420*520*1300 | |||
Weight(KG) | 20 | 24 | 35 | 60 | 80 | 90 | 130 | 150 | 180 | 280 |
